Product Overview

The STCB6o5T is a compact LED emergency driver designed to convert standard LED luminaires
into emergency lighting systems. Engineered for compliance with European, UK, and Australian
standards, it delivers reliable backup power with integrated safety features and flexible control.
Ideal for dry indoor environments, the unit ensures dependable emergency operation with
simplified installation.



Performance Specifications

• Input Voltage : 220–240VAC
• Output Voltage : DC 6–24V
• Output Power : 1W (Constant Current)
• Emergency Duration : 180 minutes



Electrical & Battery

• Battery Type : Lithium Iron Phosphate (LiFePO₄)
• Battery Capacity:2V / 1.6Ah
• Charging Time:~16 hours
• Battery Life: Up to 6 years



System Features

• Integrated self-test function
• DIP switch control to enable/disable self-test
• Deep discharge protection
• Battery temperature control
• Built-in relay for switching standard LED drivers during emergency mode

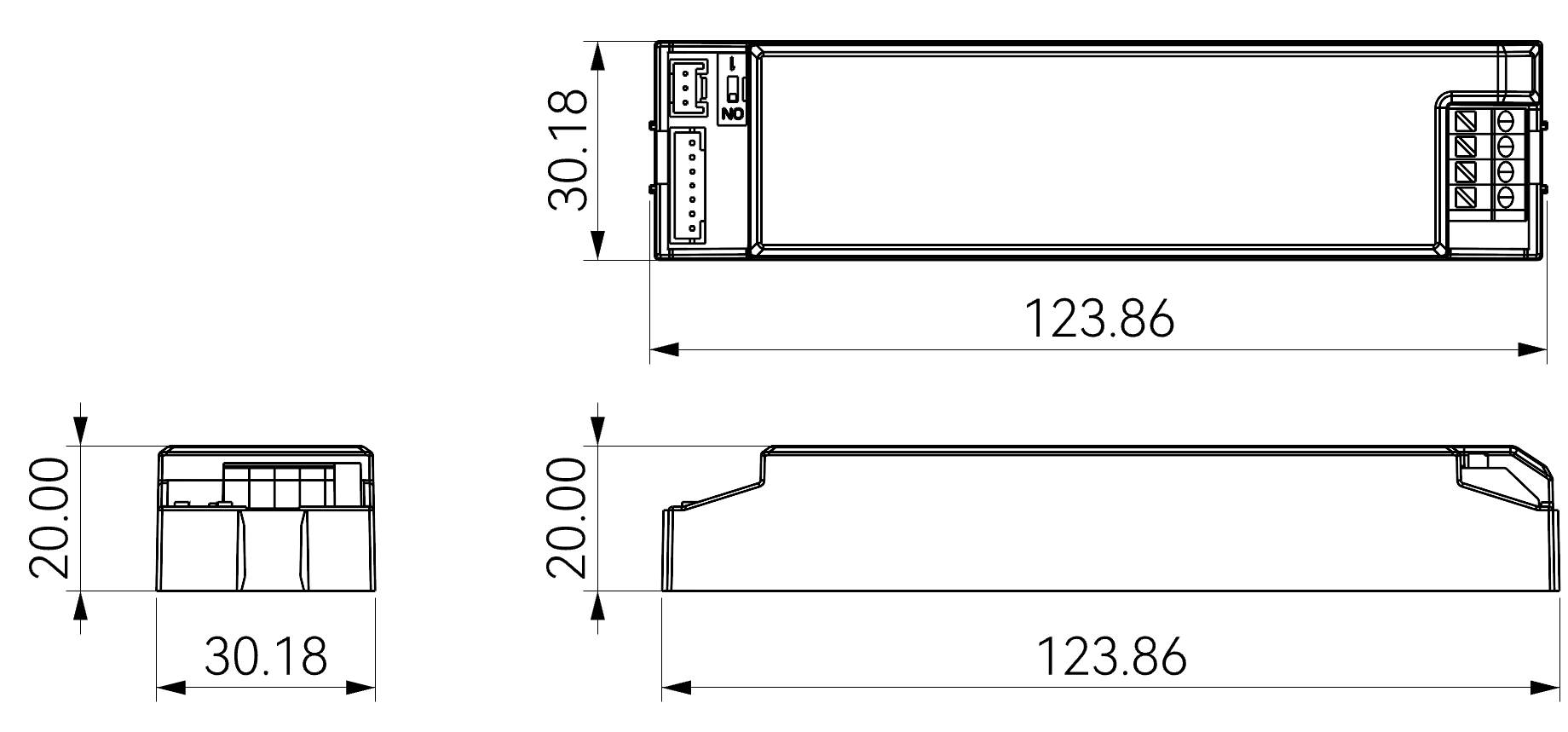

Mechanical

• Compact driver form factor for easy integration
• Designed for internal installation within luminaires



Environmental & Compliance

• IP Rating:IP20
• Operating Temperature:-20°C to +55°C
• Certifications & Standards:IEC, EN, AS/NZS compliant
• Application Environment: Dry indoor locations only



Warranty

• 3-Year Warranty (Driver & Battery)



Applications

• Commercial buildings
• Offices and retail spaces
• Indoor public areas
• Retrofit of standard LED luminaires to emergency lighting



Key Features

• Converts standard LED fixtures into emergency luminaires
• 180-minute emergency backup duration
• Long-life LiFePO₄ battery technology
• Built-in relay for seamless driver control
• Self-test with field-selectable disable function
• Multiple protection features for safety and reliability
• Compact design for easy luminaire integration



Limitations

• Not suitable for high-risk task area lighting
• Indoor use only (dry environments)
