Product Overview

The EA20 is a compact, high-performance emergency lighting module designed for EU and
Australian markets. Engineered for reliability and ease of integration ,it provides consistent
emergency illumination for corridors and open public areas. The unit features interchangeable
optics, integrated self-testing, and long-life LiFePO4 battery technology for enhanced safety and
performance.



Performance Specifications

• Light Source: LED (White)
• Color Temperature (CCT):6000K
• Color Rendering Index (CRI):≥80
• Emergency Lumen Output:90 lm
• Emergency Duration: >180 minutes



Electrical & Battery

• Battery Type:Lithium Iron Phosphate (LiFePO₄)
• Battery Features:

• Extended lifespan
• High thermal stability
• Improved safety and reliability



• System Features:

• Integrated self-test function



Optics & Distribution

• Lens Type : Interchangeable

• Open Area Lens
• Corridor Lens

• Designed to support multiple emergency lighting applications with optimized light distribution.



Mechanical

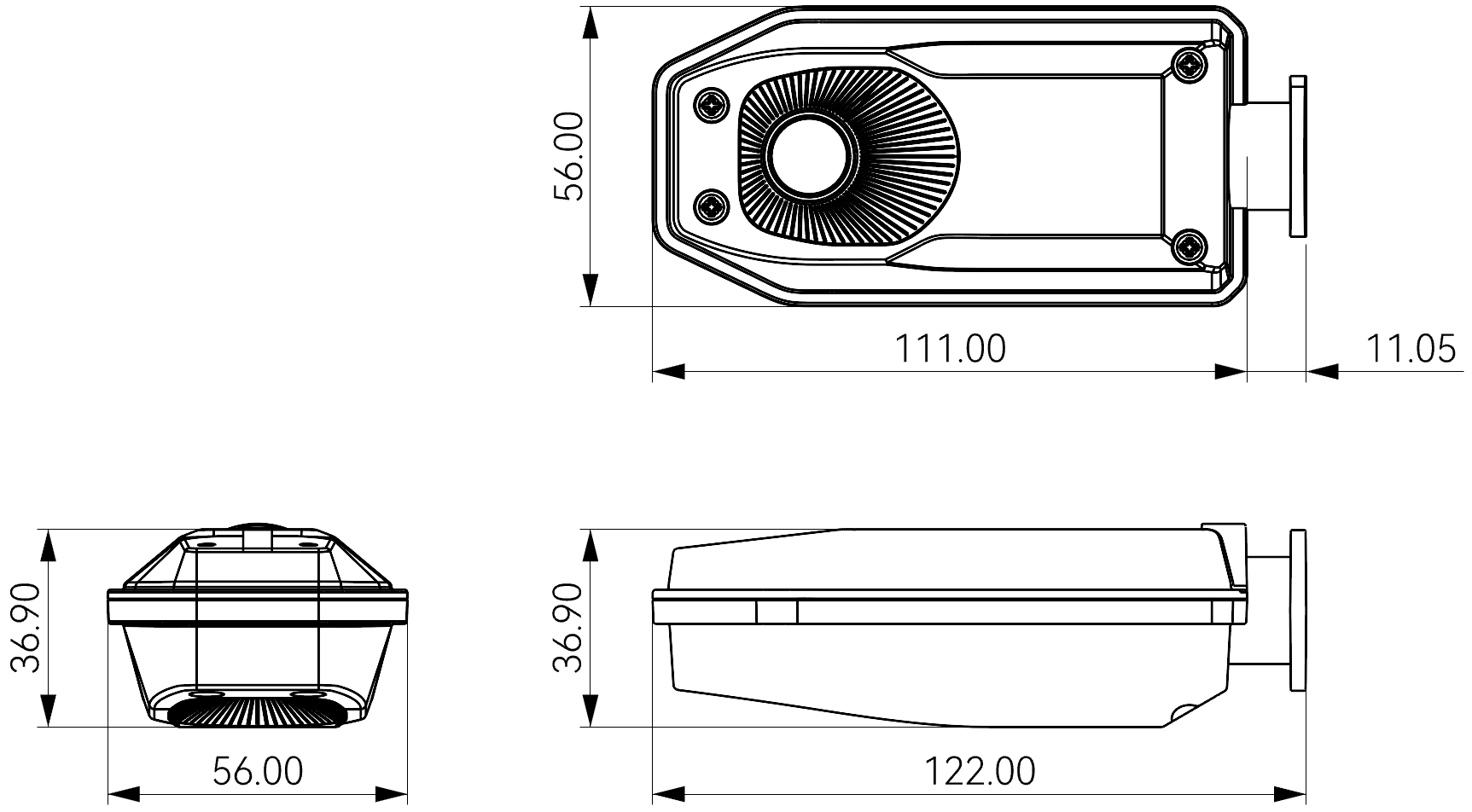

• Dimensions:1 × 56.0 × 37.9 mm
• Mounting:M20 cable gland for quick installation
• Compatibility:

• Vapor-tight luminaires
• Batten fixtures

• Compact form factor for seamless integration



Environmental & Compliance

• IP Rating:IP65
• Certifications : CE, UKCA
• Operating Environment:

• Suitable for indoor and semi-outdoor applications



Warranty

• 5-Year Warranty (Fixture & Battery)



Applications

• Corridors
• Open public areas
• Commercial buildings
• Industrial facilities



Key Features

• Long emergency runtime (>180 minutes)
• Interchangeable optical distributions
• Integrated self-test functionality
• High-reliability LiFePO₄ battery
• IP65-rated for demanding environments
• Quick retrofit installation via M20 gland
